GRIP! S

48V pendant light, pendant length 200 cm, 2000-3000 K, 29°, DALI, Dim-to-Warm, gold / black, More

50000 h

IP20

IK02

GRIP!

Item no.: 1008468

NEW

Sale only to registered specialist dealers. Log in now or become a dealer.

100+ in Stock

Accessories & lamp recommendation

Accessories

decorative ring, white

Ref. 1008488

100+ in Stock

View details

decorative ring, black

Ref. 1008489

250+ in Stock

View details

Description

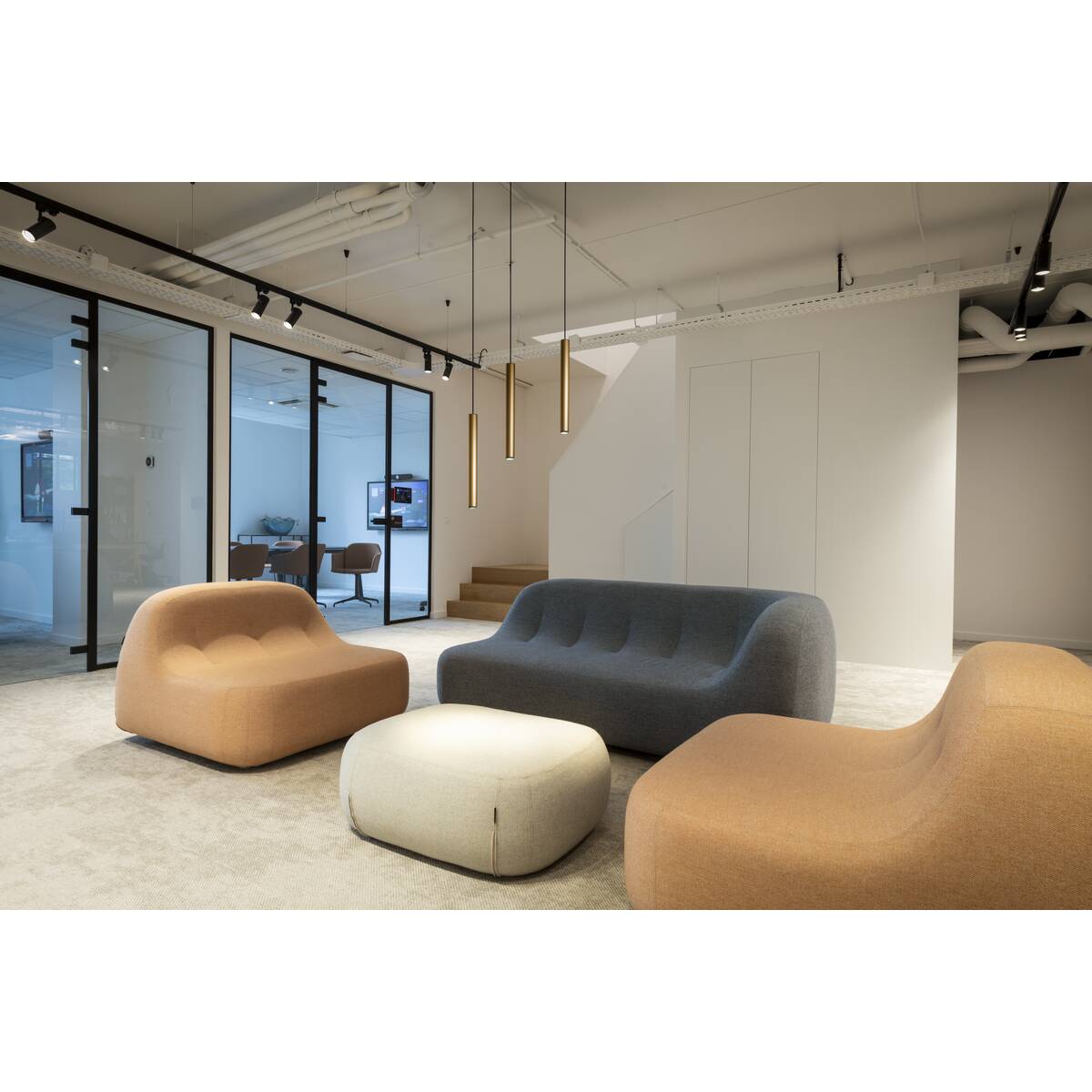

GRIP! is the new decorative pendant light from SLV that goes hand in hand with the latest design trends. The elegant eye-catcher in size S with integrated LED and a glare-reducing reflector is DALI controllable and compatible with the 48V track system. You can choose between different control options and light colour variants as well as dim-to-warm spotlights. Visually, the GRIP! pendant lights with their modern colour combinations and the decorative rings, which are available separately in four colours and allow for individual customisation.

DALI dimming This product is dimmable using a DALI dimmer.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

UGR ≤ UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.

Lighting family This product belongs to an SLV light family

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

Technical data

Product name

GRIP! L

BIG WHITE Page

531

Colour

gold/black

Material

Aluminium

electrical power

9.8 W

Luminous Flux

350 lm

Colour temperature

2000-3000 Kelvin

Half beam angle

29 °

CRI

UGR ≤

Different light outlets

Dimmable

Yes

Dimming technology

DALI

IP Code

IP20

Assembly

MOUNTING_TRACK

Assembly details

MOUNTING_DETAILED_PENDANT

Shape

cylindrical

Height

30.6 cm

Diameter

3 cm

Pendant length

200 cm

Shock resistance category

IK02

Shock resistance

0.2 joule

Primary nominal voltage

48DC

Secondary power / secondary voltage

250 mA

Ambient temperature

35 °C

Net weight

0.29 kg

Weighted consumption

10 kWh/1.000h

Service life

50000 h

Risk group

Luminous flux

350 lm

Manual (pdf)

Removal instructions (pdf)

Datasheet (pdf)

REACh (pdf)

FIND A DIMMER. GOOD COMBINATION.

Compatible dimmers

SLV VALETO BOX
SLV FUNK EINBAU-MULTIDIMMER
Berker 2873
SLV BLUETOOTH DIMMER MODUL
SLV VALETO ® DIMMER
Niko 310-0190X
Jung 224 LED UDD
LK Fuga Variateur LED 180 Touch
Busch Jäger (6523U)
Merten MEG5134-0000
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659

Please note the minimum load of the dimmers used.

Because of the many different products, it is not always easy to find the best combination. Our overview should help you to find the right dimmer.

We continuously update and extend the list, so that the latest combinations and any new products are always suggested to you.
