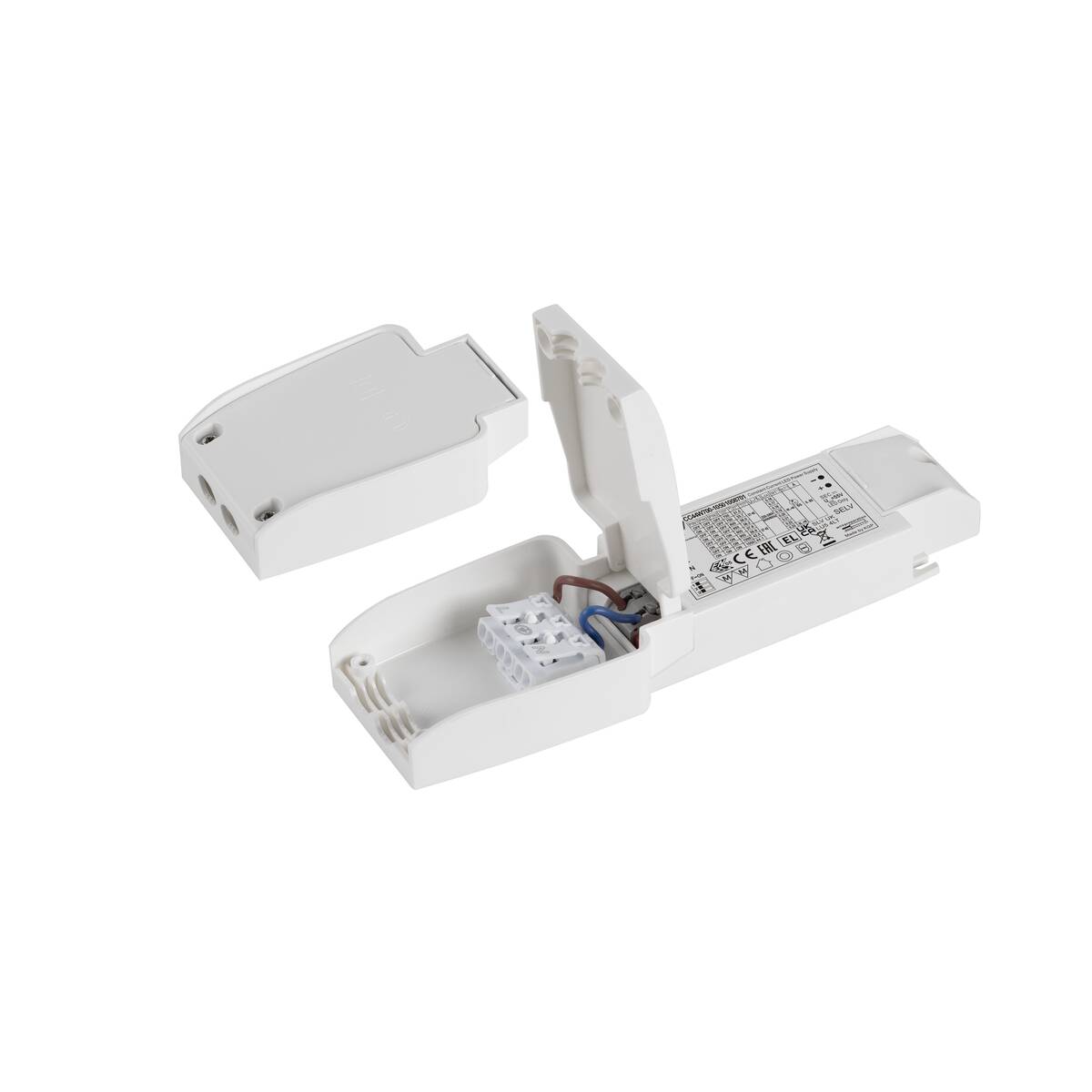

Strain relief
through-wirable, for non-dimmable drivers: 1008699, 1008700, 1008701
Item no.: 1008671
500+ in Stock
Description

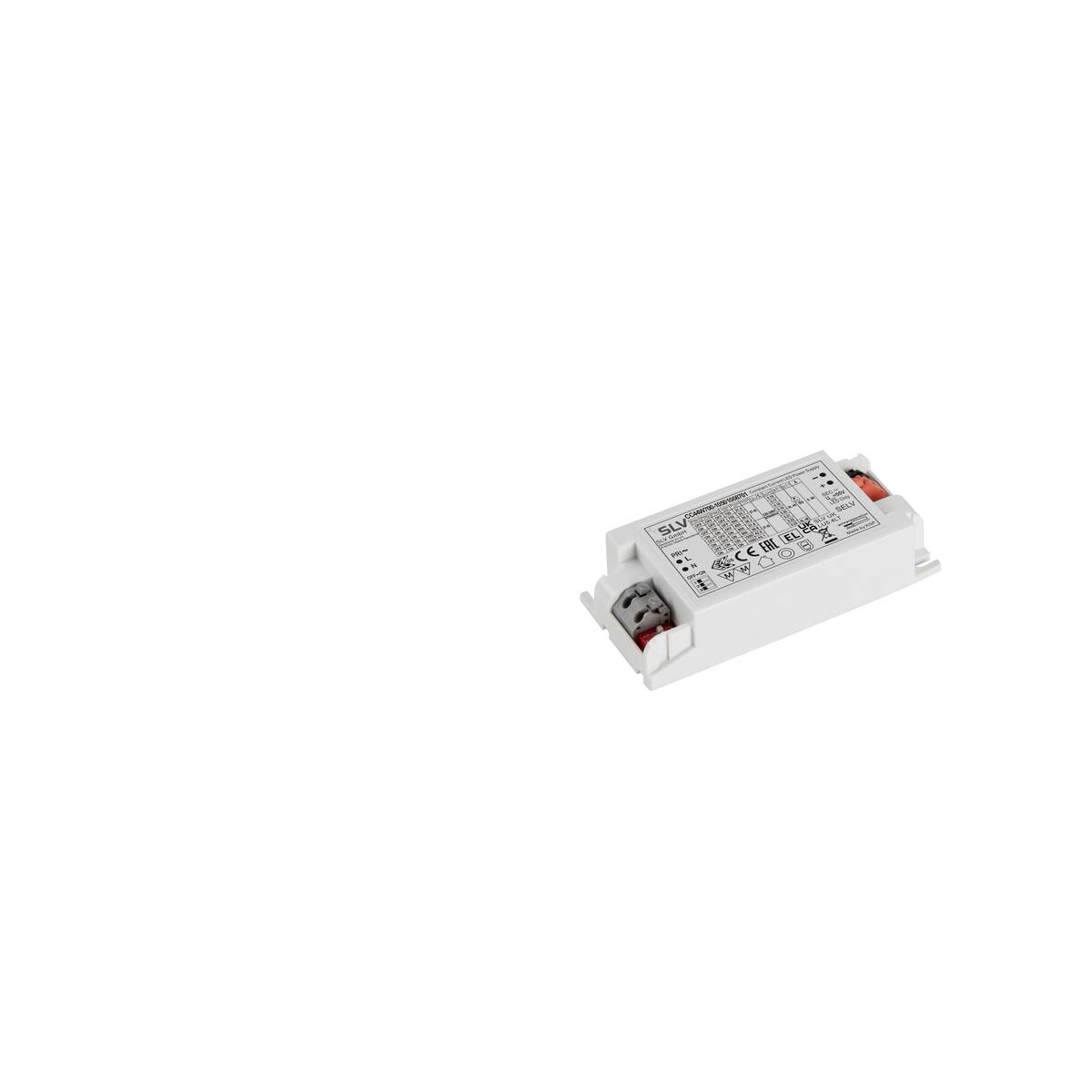

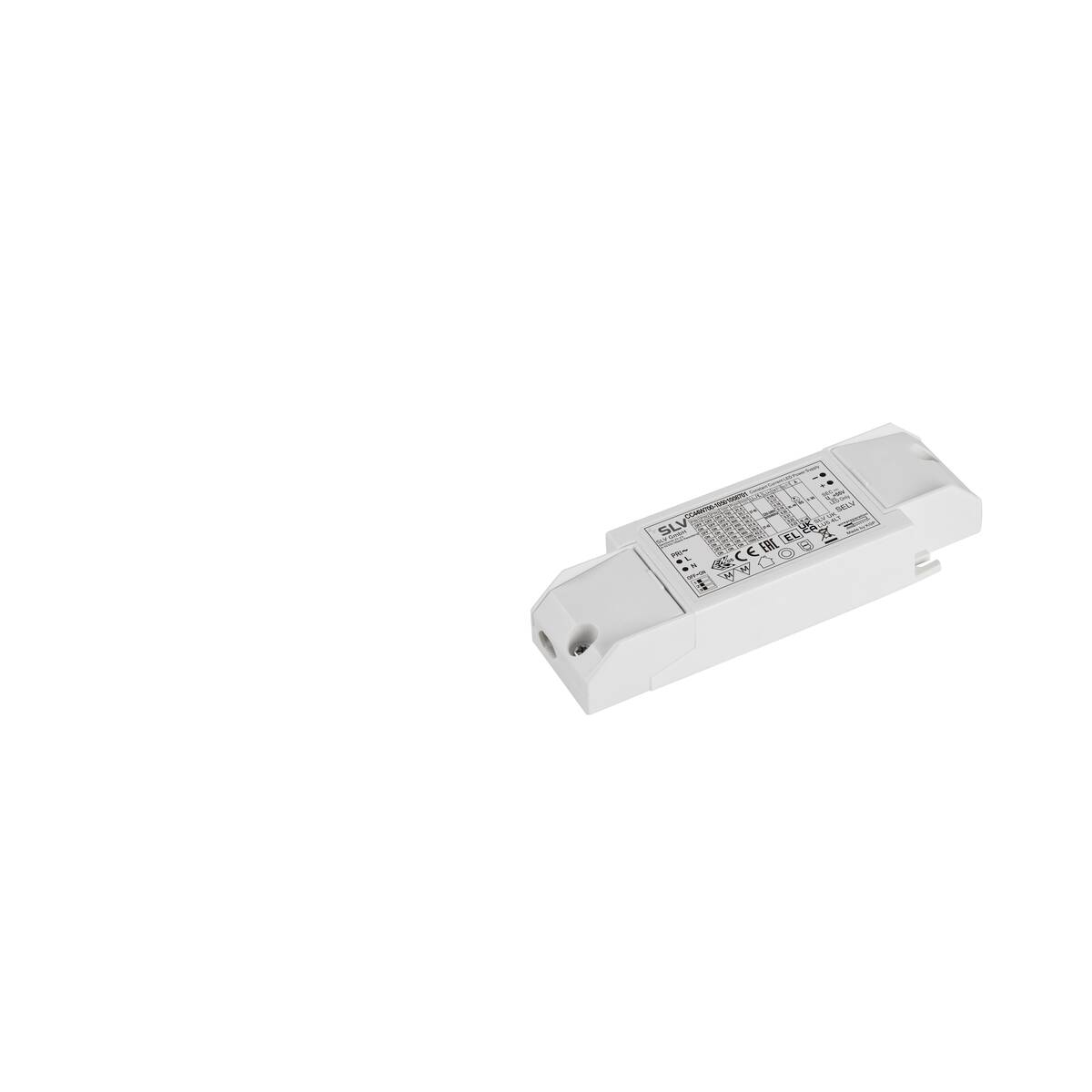

LED driver constant current, adjustable current, 44W, 700-1050mA, on/off.
Technical data
Product name
LED Treiber 44W | 700-1050mA
BIG WHITE Page
93
Colour
white
Material
Plastic PC
electrical power
50 W
Shape
rectangular
Length
97.5 mm
Width
44 mm
Height
23 mm
Output voltage
27 45
Primary nominal voltage
220-240V ~50/60 Hz
Secondary power / secondary voltage
700-1050
Output current
700 1050 mA
Number of secondary outputs
1
TC point (°C)
85 °C
Ambient temperature
-20 - 45 °C
Net weight
84 g
Weighted consumption
50 kWh/1.000h
Number of lights on LS B16A
46 St.
Number of lights on LS C16A
74 St.
Inrush current level
21 A
Inrush current duration
180 μs
Output Wattage
18.9 - 44,1 W
Rated capacity
50 W
