Description
The BATTEN P light family from the SLVtec range offers powerful and flexible LED lighting solutions that are ideal for the energy-efficient refurbishment of existing T8/T5 fluorescent lamp installations. With a light output of up to 150lm/W and a lifespan of 100,000 hours (L80B10), they provide a durable, economical solution for commercial applications such as offices, schools, retail and infrastructure. The lights are available in three lengths (600, 1200, 1500 mm) and have an integrated multi-lumen and multi-CCT function: four output levels and three light colours (3,000/4,000/5,000 K) can be set on site using a DIP switch. Versions with integrated DALI control, sensors or emergency module (3h) are also available for maximum flexibility in lighting design. With its robust aluminium and polycarbonate (IP20, IK04) housing and simple assembly, the BATTEN P is ideal for demanding projects. An optional accessory 2m steel cable suspension kit completes the system and allows flexible mounting options such as ceiling or pendant mounting.
Technical data
Product name
BATTEN P 1200 52 830/840/850
Colour
white
electrical power
20 W
Luminous Flux
5200/5000/5000 lm
Colour temperature
5000/4000/3000 Kelvin
CRI
80
Dimmable
Yes
Dimming technology
DALI
CCT switch
Yes
IP Code
IP20
Assembly
Surface
Assembly details
Ceiling
Wall
Wall
Shape
rectangular

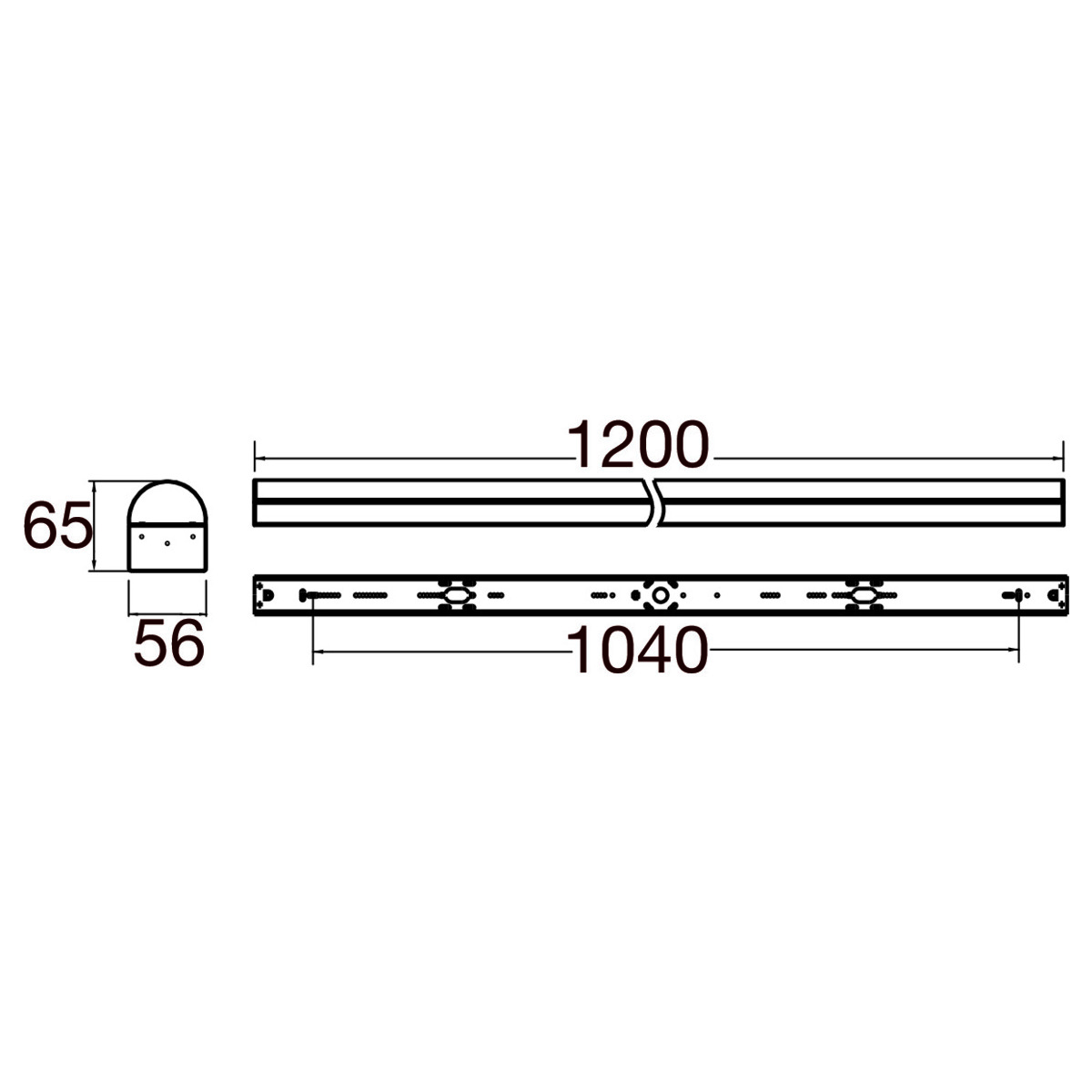

Length
120 cm
Width
5.6 cm
Height
6.5 cm
Shock resistance category
IK04
Primary nominal voltage
220-240V ~0/50/60 Hz
Secondary power / secondary voltage
200-375mA
Ambient temperature
80 °C
Ambient temperature
-20 - 40 °C
Net weight
0.85 kg
Weighted consumption
20 kWh/1.000h
Batteries required
LiFePO4|Lithium-Eisenphosphat (LiFePO4)
Service life
100000 h
Number of lights on LS B16A
30 St.
Number of lights on LS C16A
49 St.
Inrush current level
17 A
Inrush current duration
222 μs
Luminous flux
5200 / 5000 / 5000 lm
