IP65

IK04

Trailing edge phase dimmer This product is dimmable using a trailing edge phase dimmer.

Gimballed This product can be swivelled and pivoted.

Direct lighting - beam angle This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

CCT switch By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

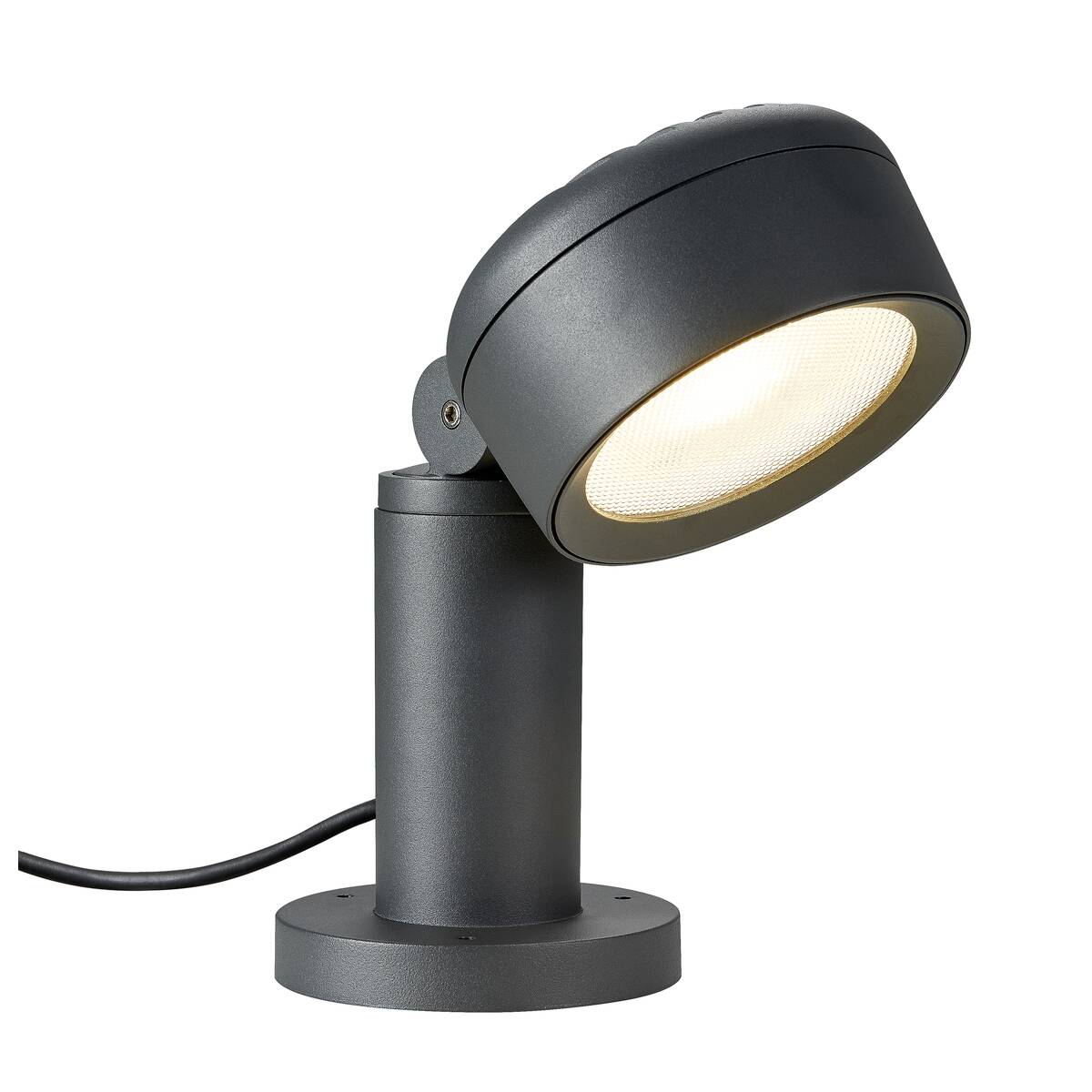

ESKINA Pole

Outdoor floor stand, anthracite, 3000/4000K, IP65, dimmable, incl. UK Plug, More

IP65

IK04

Item no.: 1007935

RRP £242.00

Price only for commercial customers, plus VAT.

Dispatch on 02.09.2025

Accessories & lamp recommendation

Accessories

for VAP SLIM 30/60/90, VAP, BERRA and SITRA, galvanised steel

Item no.: 230060

250+ in Stock

RRP £46.00*

price.mode.excl_vat.international

View details

Description

A new family in the SLV lighting world! We are providing you with an integrated outdoor lighting solution with the ESKINA family. Regardless of whether it is a floor stand, a wall and ceiling light or a display fitting. You will find the right light for any application. All of the luminaires can be operated with 3000 K or 4000 K. Versions with motion sensors are also available.

Trailing edge phase dimmer This product is dimmable using a trailing edge phase dimmer.

Gimballed This product can be swivelled and pivoted.

Direct lighting - beam angle This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

CCT switch By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

Technical data

Colour

anthracite

Material

Aluminium

electrical power

14.5 W

Luminous Flux

1000 lm

Colour temperature

3000/4000 Kelvin

Beam angle

95 °

Dimmable

Yes

Dimming technology

trailing edge

CCT switch

Yes

IP Code

IP65

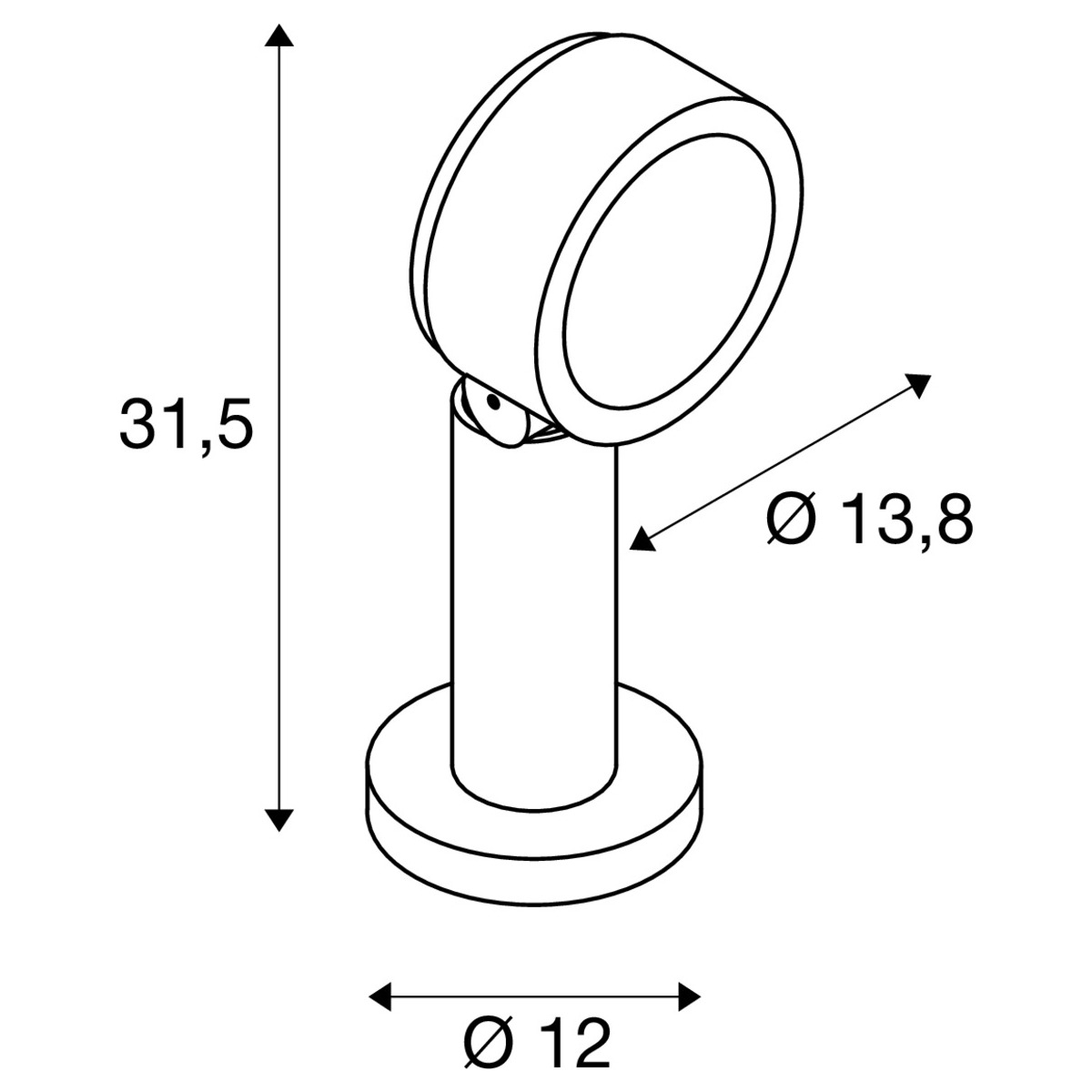

Height

31.5 cm

Diameter

13.8 cm

Rotating or tilting

rotary bar and tiltable

Vertical tilting range

105 °

Horizontal rotation range

340 °

Shock resistance category

IK04

Shock resistance

0.5 joule

Primary nominal voltage

220-24050/60 Hz

Secondary power / secondary voltage

350 mA

Ambient temperature

25 °C

Net weight

1.3 kg

Weighted consumption

15 kWh/1.000h

Inrush current level

30 A

Inrush current duration

40 μs

Connection cable length

330 cm

Luminous flux

1000 lm

Manual (pdf)

Removal instructions (pdf)

Assembly drawings (pdf)

CE declaration (pdf)

Datasheet (pdf)

REACh (pdf)

Tender Text (txt)

FIND A DIMMER. GOOD COMBINATION.

Compatible dimmers

Berker 2883
Niko 310-0190X
LK Fuga LED Dimmer 180 Touch
Busch Jäger (6523U)
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659

Please note the minimum load of the dimmers used.

Because of the many different products, it is not always easy to find the best combination. Our overview should help you to find the right dimmer.

We continuously update and extend the list, so that the latest combinations and any new products are always suggested to you.
