IP66

IK04

Trailing edge phase dimmer This product is dimmable using a trailing edge phase dimmer.

Gimballed This product can be swivelled and pivoted.

Direct lighting - beam angle This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

HELIA

outdoor pathway and floor stand, LED, 3000K, round, anthracite, 15W, can be converted to a spike luminaire, incl. UK Plug, More

IP66

IK04

Item no.: 1007943

RRP £194.00

Price only for commercial customers, plus VAT.

Dispatch on 22.07.2025

Accessories & lamp recommendation

Accessories

for HELIA pathway and floor stand, stainless steel, 17 cm

Item no.: 228560

250+ in Stock

RRP £23.00*

price.mode.excl_vat.international

View details

Description

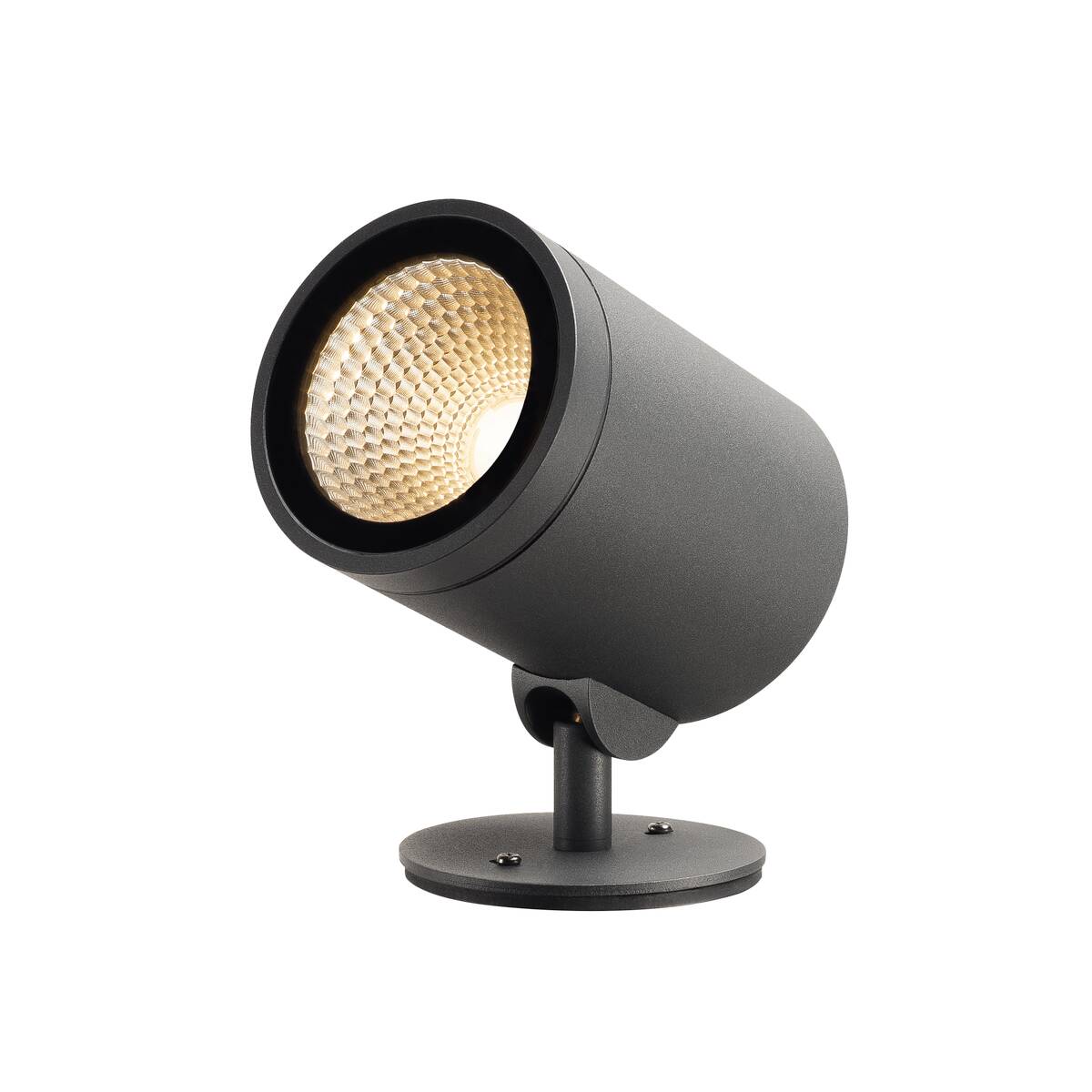

The HELIA LED pathway luminaire is fitted with a powerful 15 W high-voltage LED and comes in a warm-white colour of light. The luminaire is made of aluminium and is connected using the 3 m supply cable with open cable ends directly to the 230V mains supply. Thanks to its IP55 protection class, the luminaire is suitable for outdoor use. This dimmable luminaire contains built-in LED lamps.

Trailing edge phase dimmer This product is dimmable using a trailing edge phase dimmer.

Gimballed This product can be swivelled and pivoted.

Direct lighting - beam angle This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

Technical data

Colour

anthracite

Material

Aluminium

electrical power

15 W

Luminous Flux

1340 lm

Colour temperature

3000 Kelvin

Beam angle

40 °

Dimmable

Yes

Dimming technology

trailing edge

IP Code

IP66

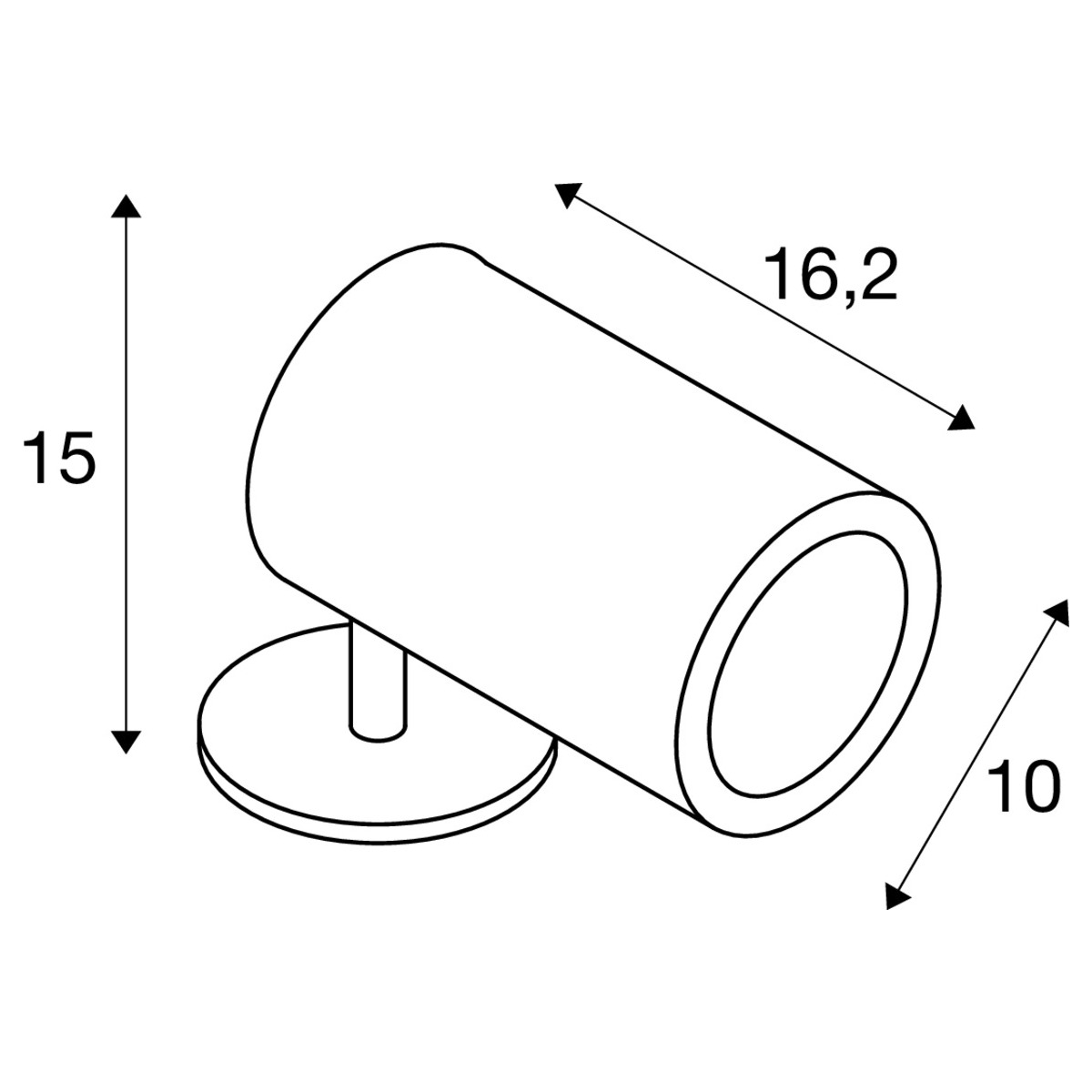

Length

16.2 cm

Height

15 cm

Diameter

10 cm

Rotating or tilting

rotary bar and tiltable

Vertical tilting range

90 °

Horizontal rotation range

320 °

Shock resistance category

IK04

Shock resistance

0.5 joule

Primary nominal voltage

220-24050/60 Hz

Secondary power / secondary voltage

700 mA

Net weight

1.03 kg

Weighted consumption

15 kWh/1.000h

Inrush current level

10 A

Inrush current duration

40 μs

Luminous flux

1340 lm

Connection cable length

300 cm

Manual (pdf)

Removal instructions (pdf)

Assembly drawings (pdf)

CE declaration (pdf)

Datasheet (pdf)

REACh (pdf)

Tender Text (txt)

FIND A DIMMER. GOOD COMBINATION.

Compatible dimmers

Berker 2883
Niko 310-0190X
LK Fuga LED Dimmer 180 Touch
Busch Jäger (6523U)
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659

Please note the minimum load of the dimmers used.

Because of the many different products, it is not always easy to find the best combination. Our overview should help you to find the right dimmer.

We continuously update and extend the list, so that the latest combinations and any new products are always suggested to you.
