HELIA

outdoor spot, LED, 3000K, 35°, anthracite, IP66, incl. UK Plug, More

IP66

IK04

Item no.: 1007944

RRP £151.00

Price only for commercial customers, plus VAT.

<10 in Stock

Accessories & lamp recommendation

Accessories

for HELIA LED SPOT, stainless steel

Item no.: 1000736

500+ in Stock

RRP £19.00*

price.mode.excl_vat.international

View details

Description

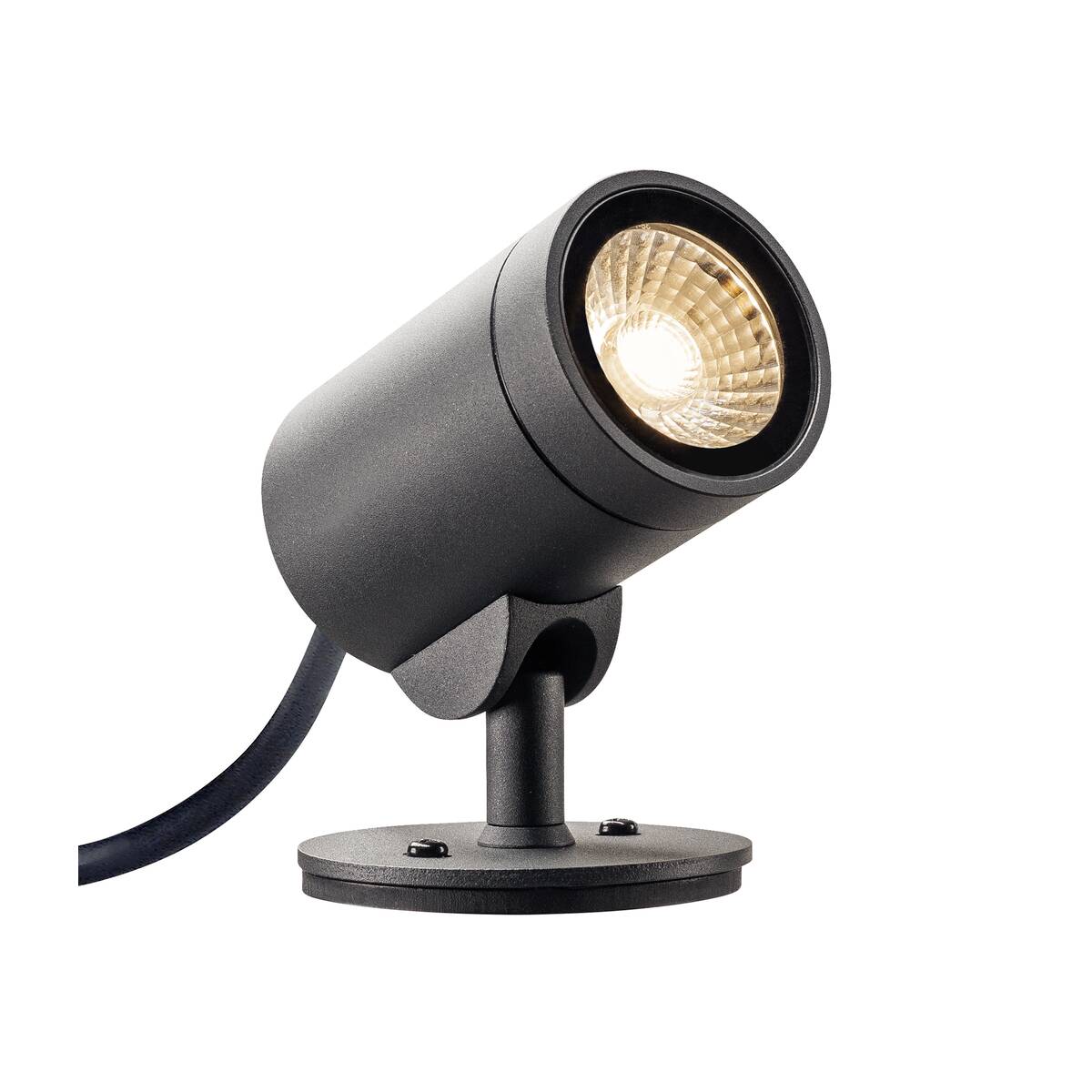

The HELIA LED pathway luminaire is equipped with an 8 W high-voltage LED and emits a warm-white light colour. The luminaire is made of aluminium and is connected using the 3 m supply cable with open cable ends directly to the 230V mains supply. Thanks to its IP66 protection class, the luminaire is suitable for outdoor use.

Gimballed This product can be swivelled and pivoted.

Direct lighting - beam angle This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

Technical data

Colour

anthracite

Material

Aluminium

electrical power

6.5 W

Luminous Flux

440 lm

Colour temperature

3000 Kelvin

Beam angle

35 °

Different light outlets

IP Code

IP66

Length

11.5 cm

Height

9.5 cm

Diameter

5.5 cm

Rotating or tilting

rotary bar and tiltable

Vertical tilting range

90 °

Horizontal rotation range

330 °

Shock resistance category

IK04

Shock resistance

0.5 joule

Primary nominal voltage

220-24050/60 Hz

Secondary power / secondary voltage

500 mA

Ambient temperature

-20 - 40 °C

Net weight

0.58 kg

Weighted consumption

7 kWh/1.000h

Inrush current level

4.5 A

Inrush current duration

30 μs

Luminous flux

440 lm

Connection cable length

300 cm

Manual (pdf)

Removal instructions (pdf)

Assembly drawings (pdf)

CE declaration (pdf)

Datasheet (pdf)

REACh (pdf)

Tender Text (txt)
