20 °

30 °

50000 h

IP20

IK02

KADUX

DALI dimming This product is dimmable using a DALI dimmer.

Vertical pivot range This product can be pivoted vertically.

Indirect lighting - beam angle This value describes the beam angle of the indirect lighting. The smaller the angle, the more concentrated the light will be.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

KADUX

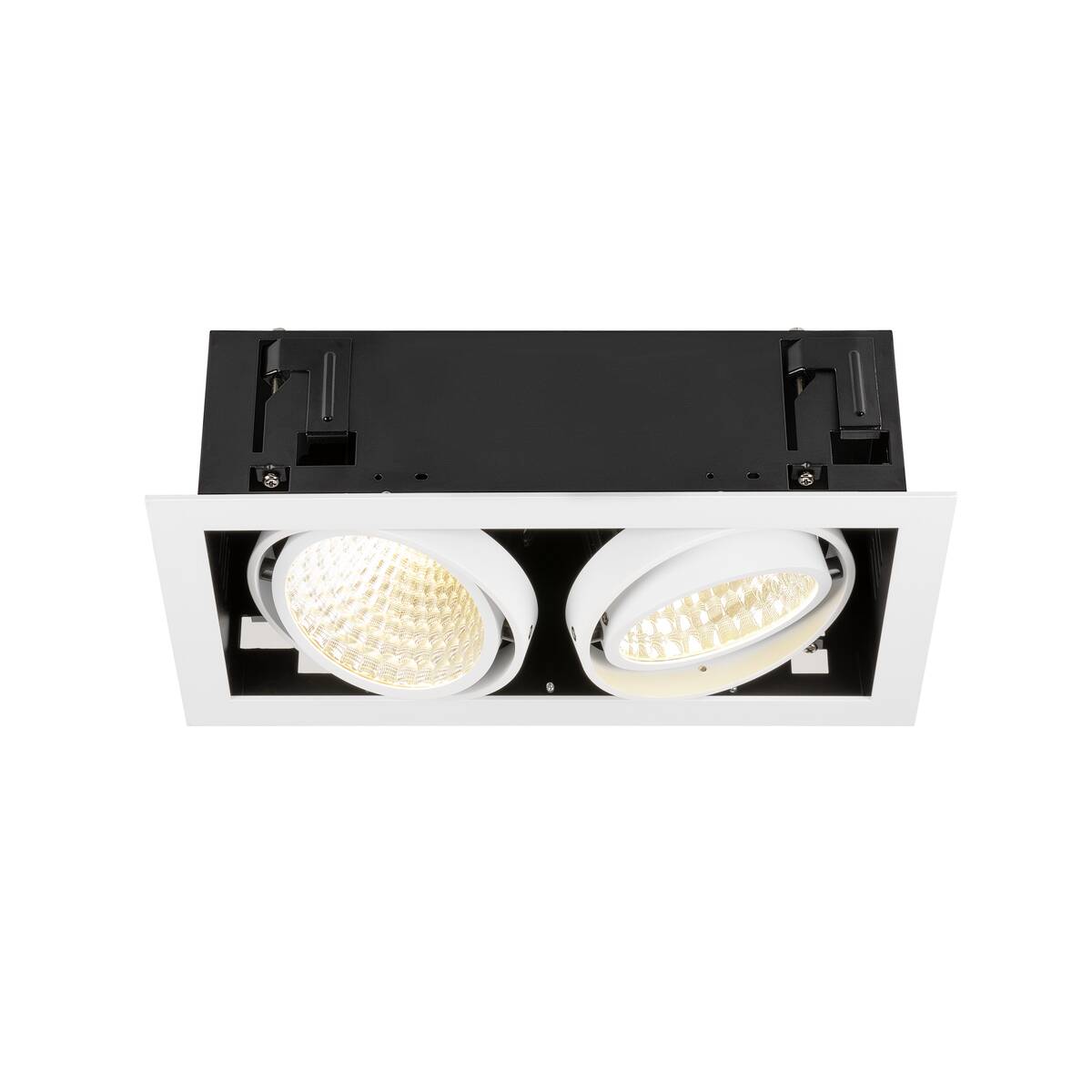

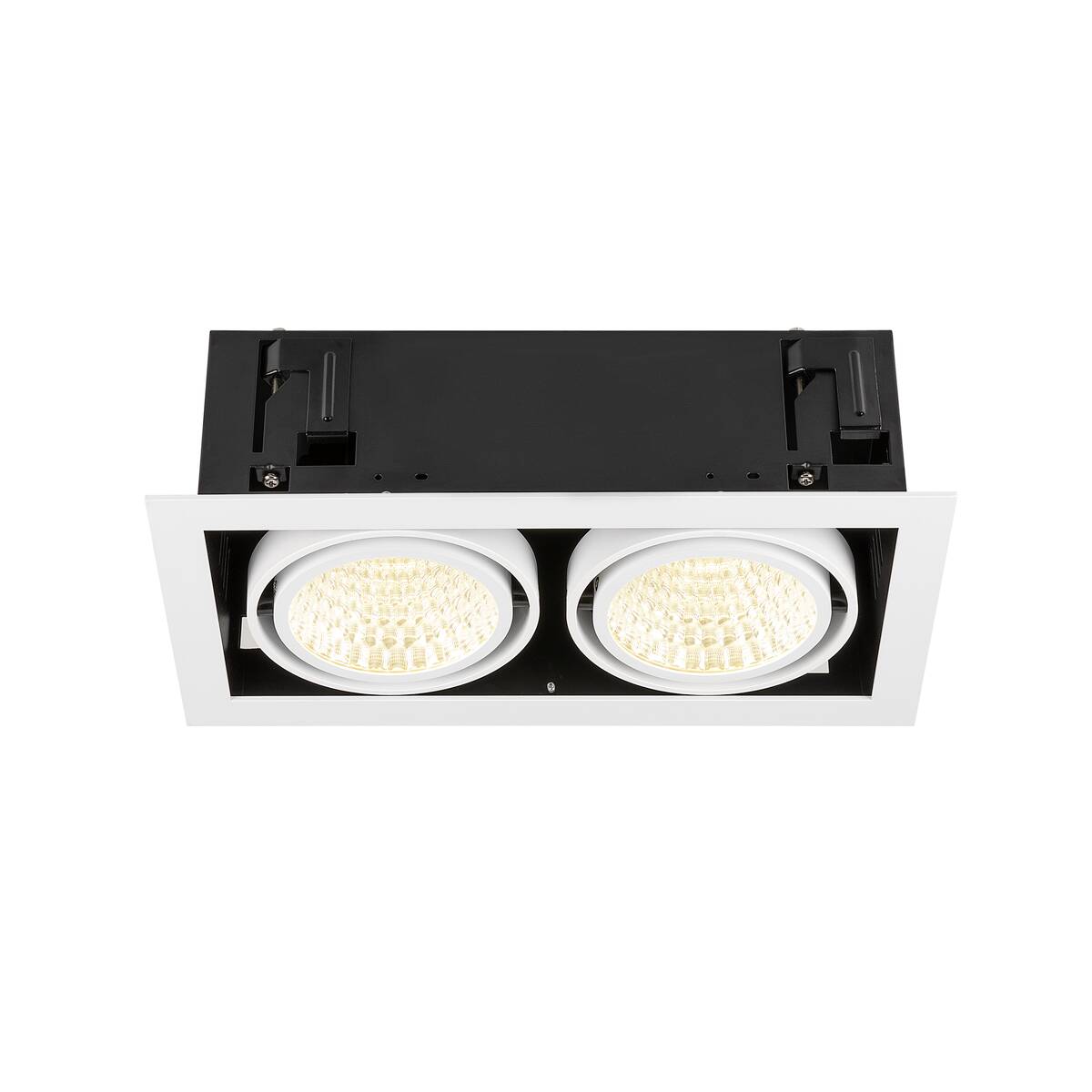

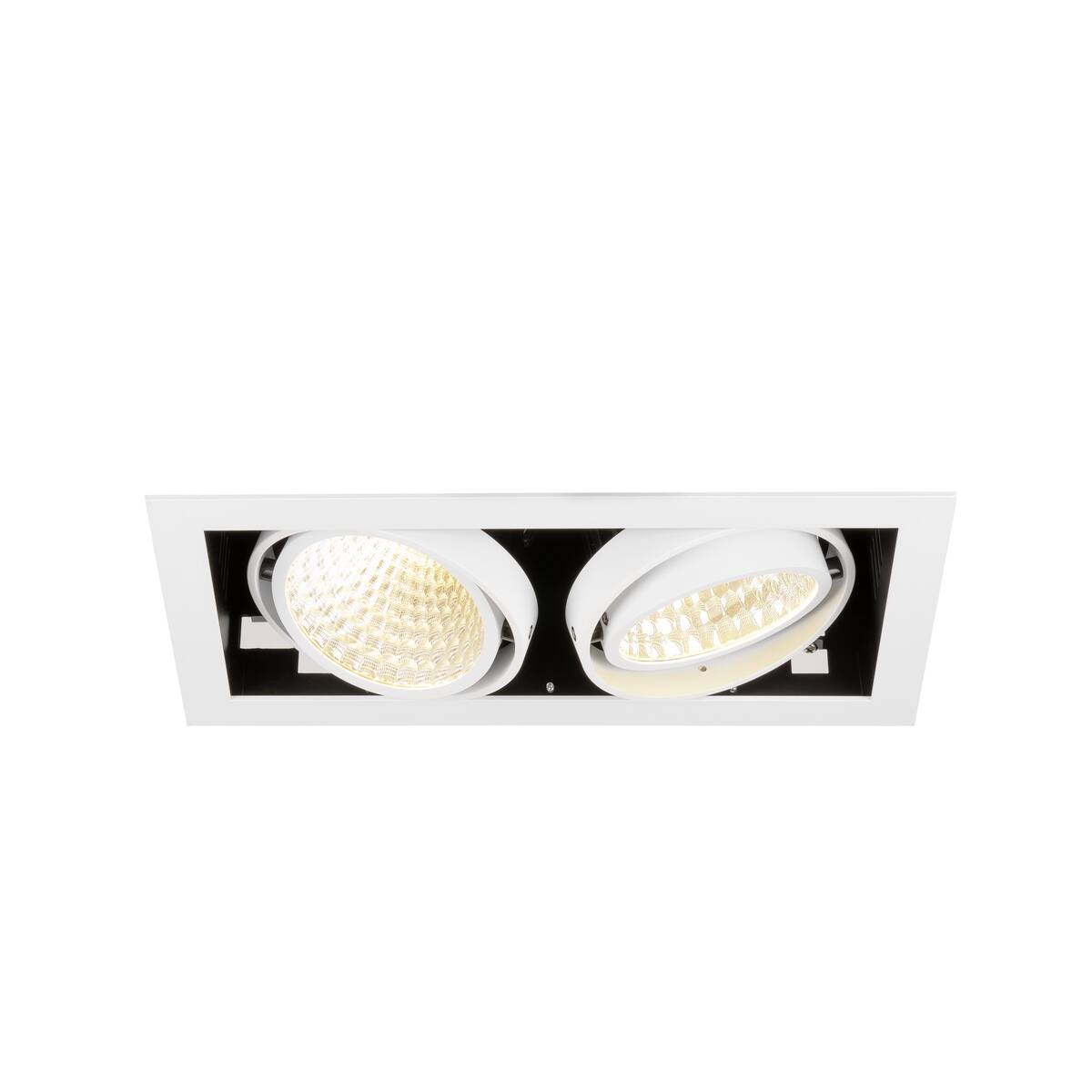

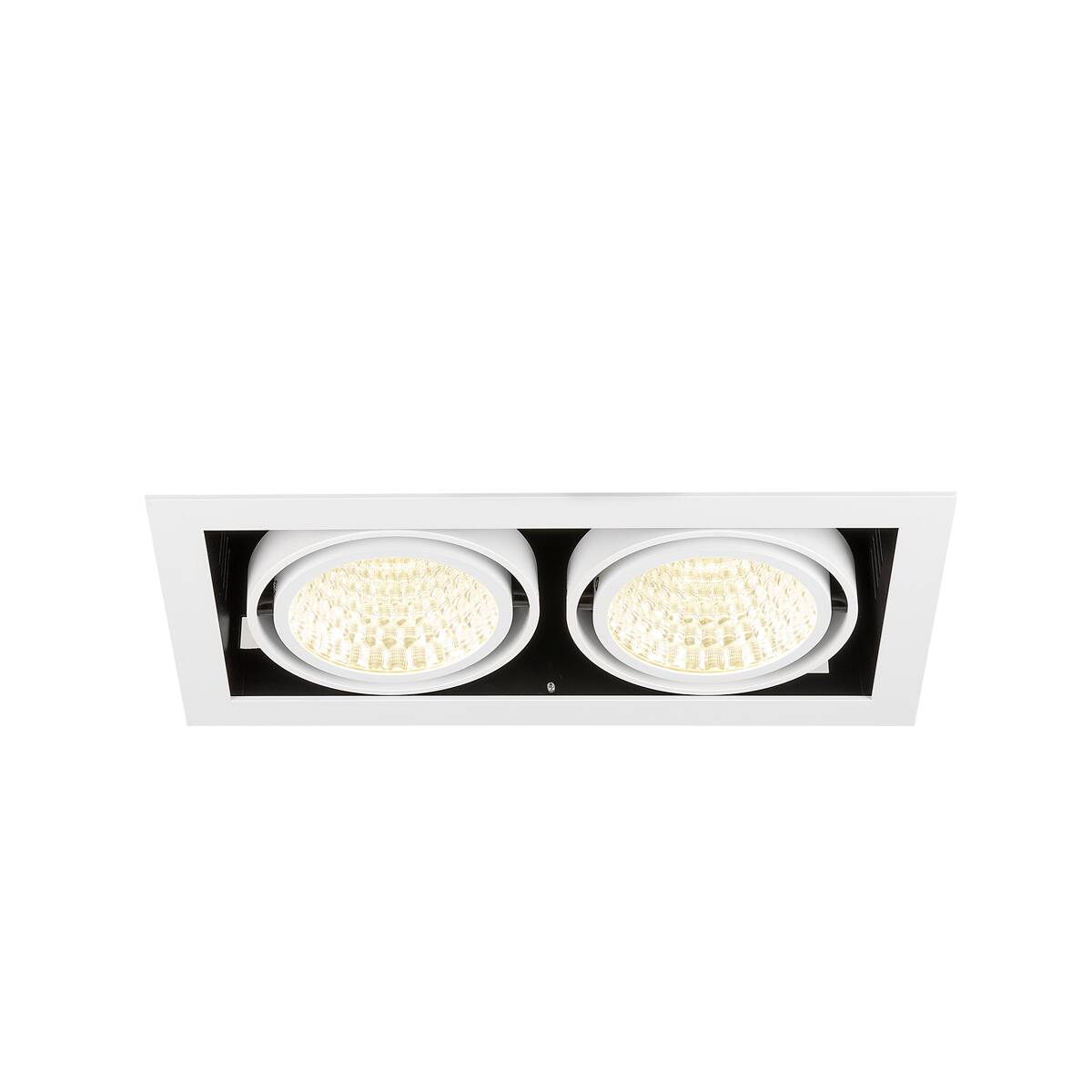

recessed ceiling light, double, 3000 K, DALI 2, touch, 30°, white, More

20 °

30 °

50000 h

IP20

IK02

KADUX

Colour:

Colour temperature:

Reset selection

Item no.: 1008571

NEW

RRP £343.00

Price only for commercial customers, plus VAT.

100+ in Stock

Description

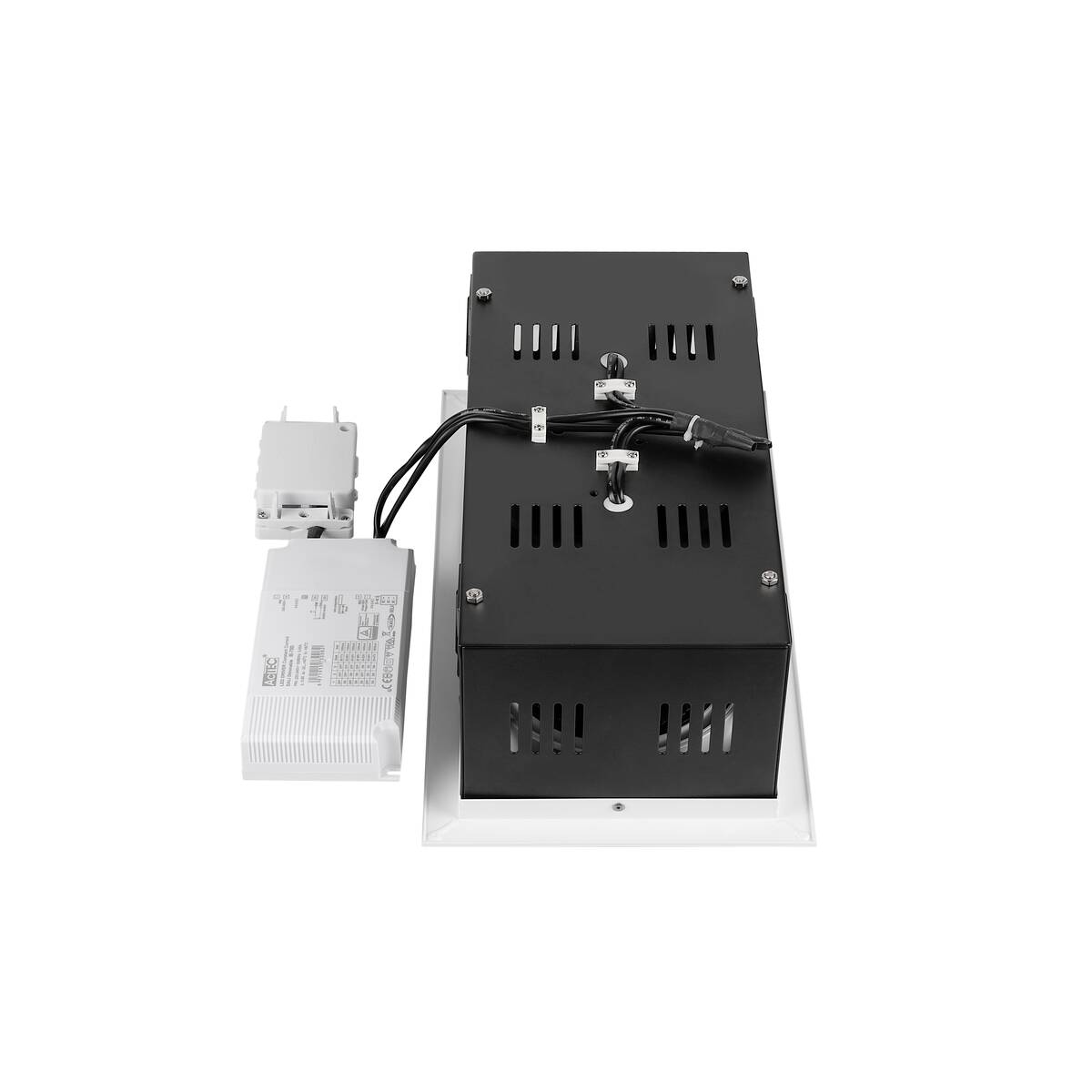

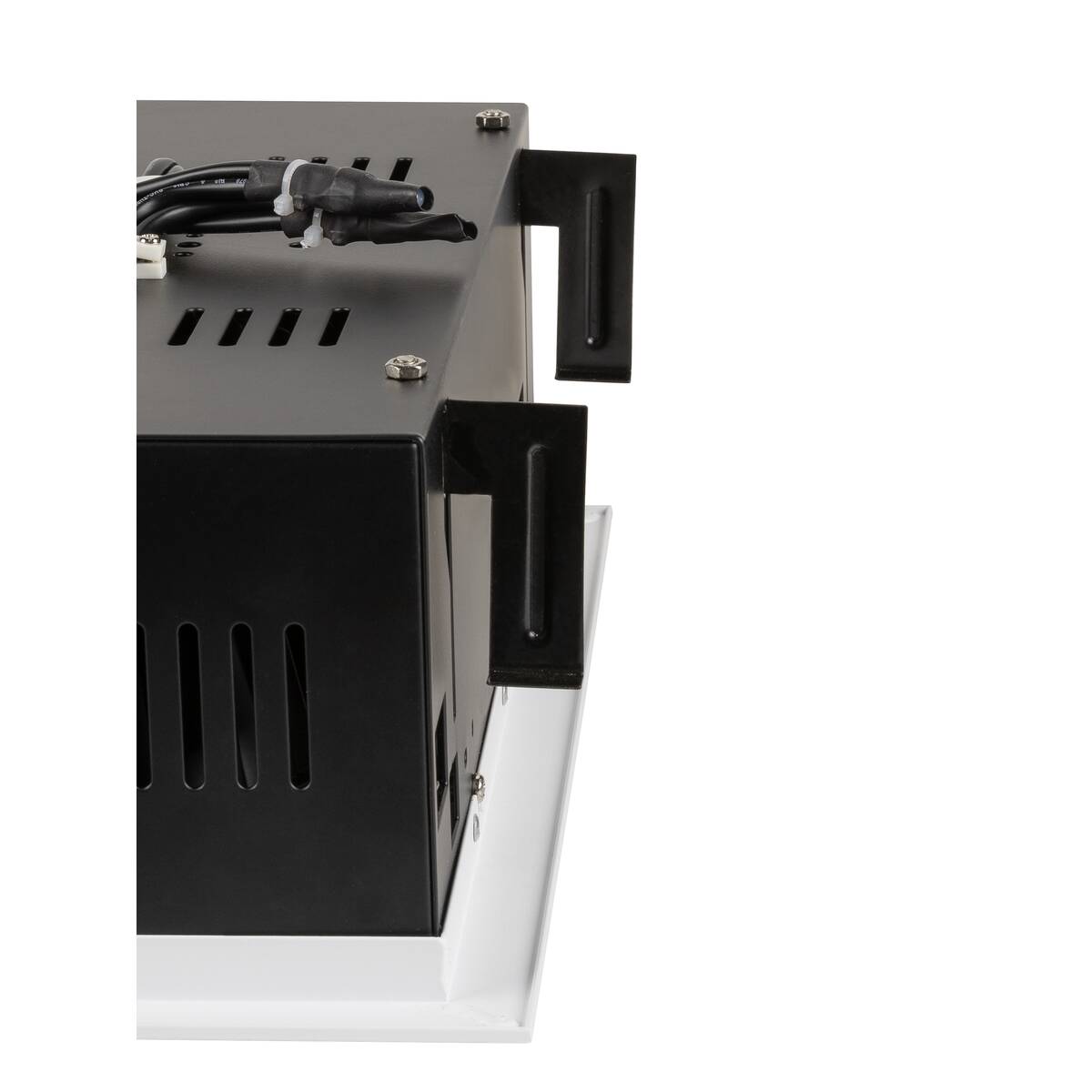

Experience high light output and efficiency for use in shops and retail environments: KADUX is our gimbal-mounted recessed ceiling luminaire, available as a single or double-lamp version in white or black and various colour temperatures (3000 K/4000 K). Thanks to the quick-connection box in a closed steel housing, the light is easy to install and is both robust and durable.

DALI dimming This product is dimmable using a DALI dimmer.

Vertical pivot range This product can be pivoted vertically.

Indirect lighting - beam angle This value describes the beam angle of the indirect lighting. The smaller the angle, the more concentrated the light will be.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

Energy efficiency class The energy efficiency class refer to the (contained) light source.

To the technical details

Technical data

Product name

KADUX

BIG WHITE Page

Colour

white/black

Material

Aluminium

electrical power

54 W

Luminous Flux

3150 lm

Colour temperature

3000 Kelvin

Beam angle

30 / 30 °

CRI

Different light outlets

Dimmable

Yes

Dimming technology

Touch
DALI

IP Code

IP20

Assembly

Recessed

Assembly details

Ceiling

Shape

rectangular

Length

37 cm

Width

19.5 cm

Height

12.5 cm

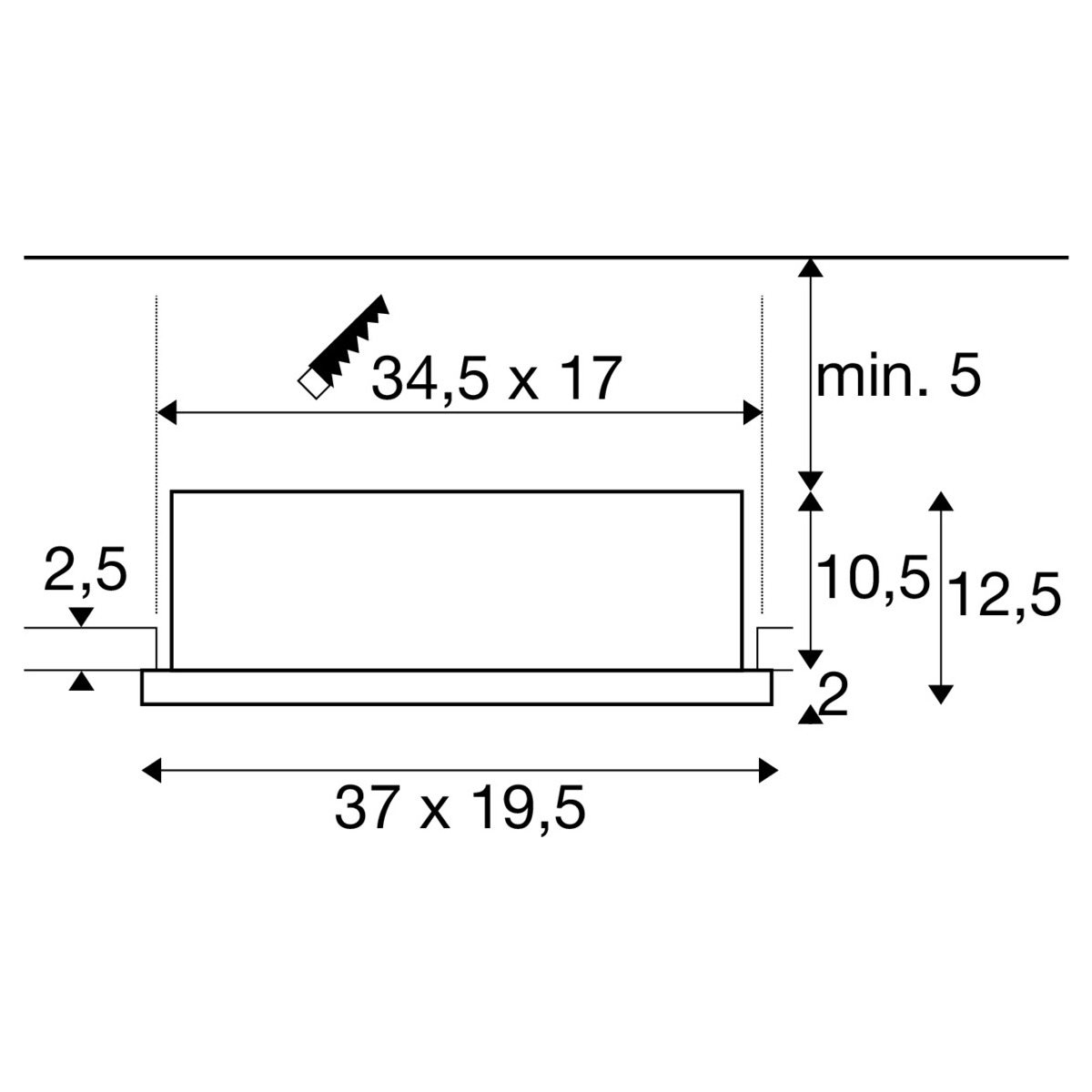

Shape of cut-out

square

Installation length

34.5 cm

Installation width

17 cm

Installation depth

12.5 cm

Vertical tilting range

20 °

Colour consistency

6 SDCM

Colour consistency

6 / 6 SDCM

Shock resistance category

IK02

Shock resistance

0.2 joule

Primary nominal voltage

220-240V ~50/60 Hz

Secondary power / secondary voltage

1400 mA

Ambient temperature

90 °C

Ambient temperature

-20 - 40 °C

Net weight

2.8 kg

Weighted consumption

54 kWh/1.000h

Service life

50000 h

Number of lights on LS B16A

36 St.

Number of lights on LS C16A

36 St.

Inrush current level

9.1 A

Inrush current duration

174 μs

Luminous flux

3150 lm

Manual (pdf)

CE declaration (pdf)

Datasheet (pdf)

REACh (pdf)

FIND A DIMMER. GOOD COMBINATION.

Compatible dimmers

VALETO BOX TRIAC DIM
RADIO RECESSED MULTI-DIMMER
Berker 2883
BLUETOOTH DIMMER MODULE
VALETO® DIMMER for RECESSED WALL INSTALLATION
Niko 310-0190X
Jung 224 LED UDD
LK Fuga LED Dimmer 180 Touch
Busch Jäger (6523U)
Merten MEG5134-0010
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659

Please note the minimum load of the dimmers used.

Because of the many different products, it is not always easy to find the best combination. Our overview should help you to find the right dimmer.

We continuously update and extend the list, so that the latest combinations and any new products are always suggested to you.
