30 °

50000 h

IP20

IK02

KADUX

Leading and trailing edge phase dimmer This product is dimmable using a trailing and leading edge phase dimmer.

Vertical pivot range This product can be pivoted vertically.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

To the technical details

KADUX

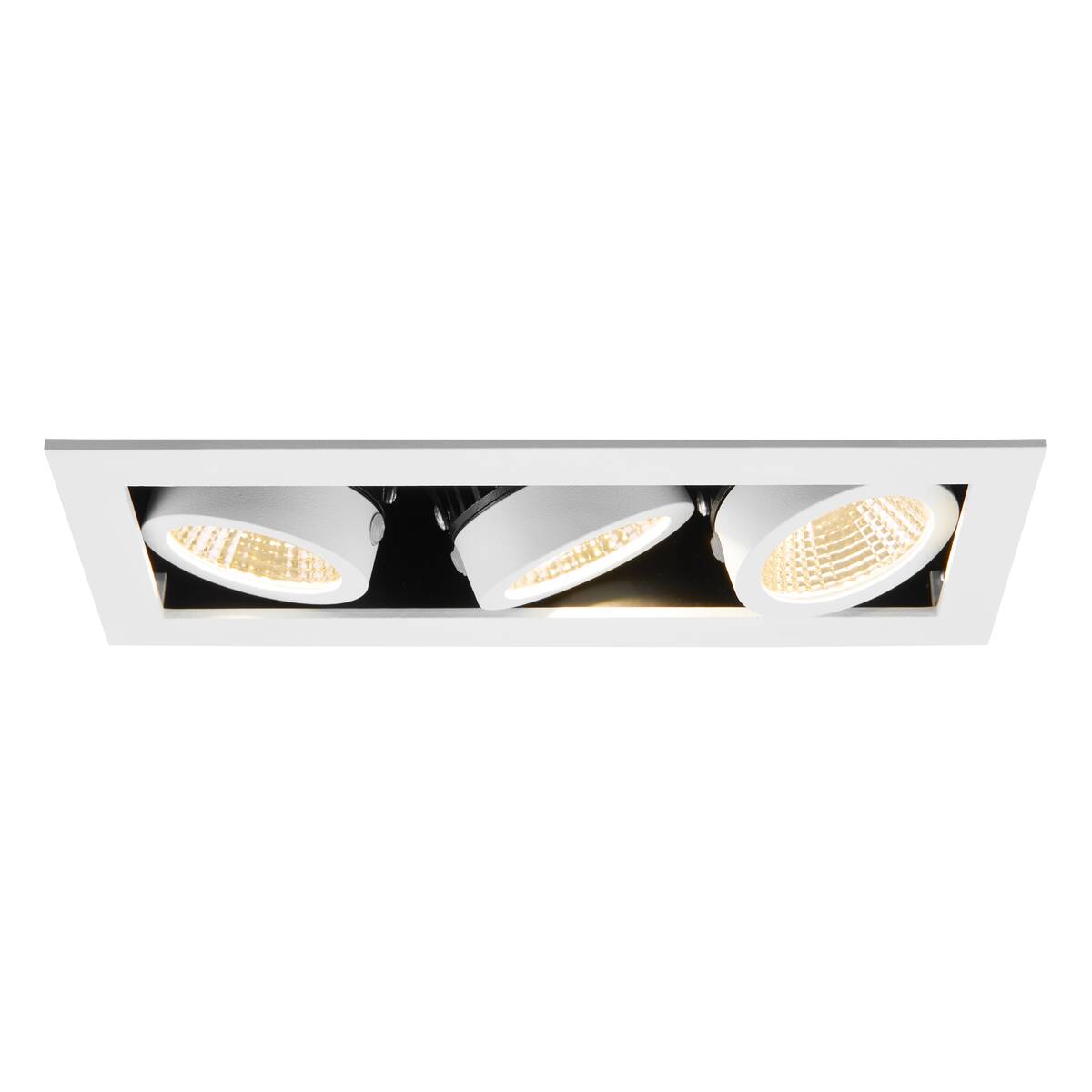

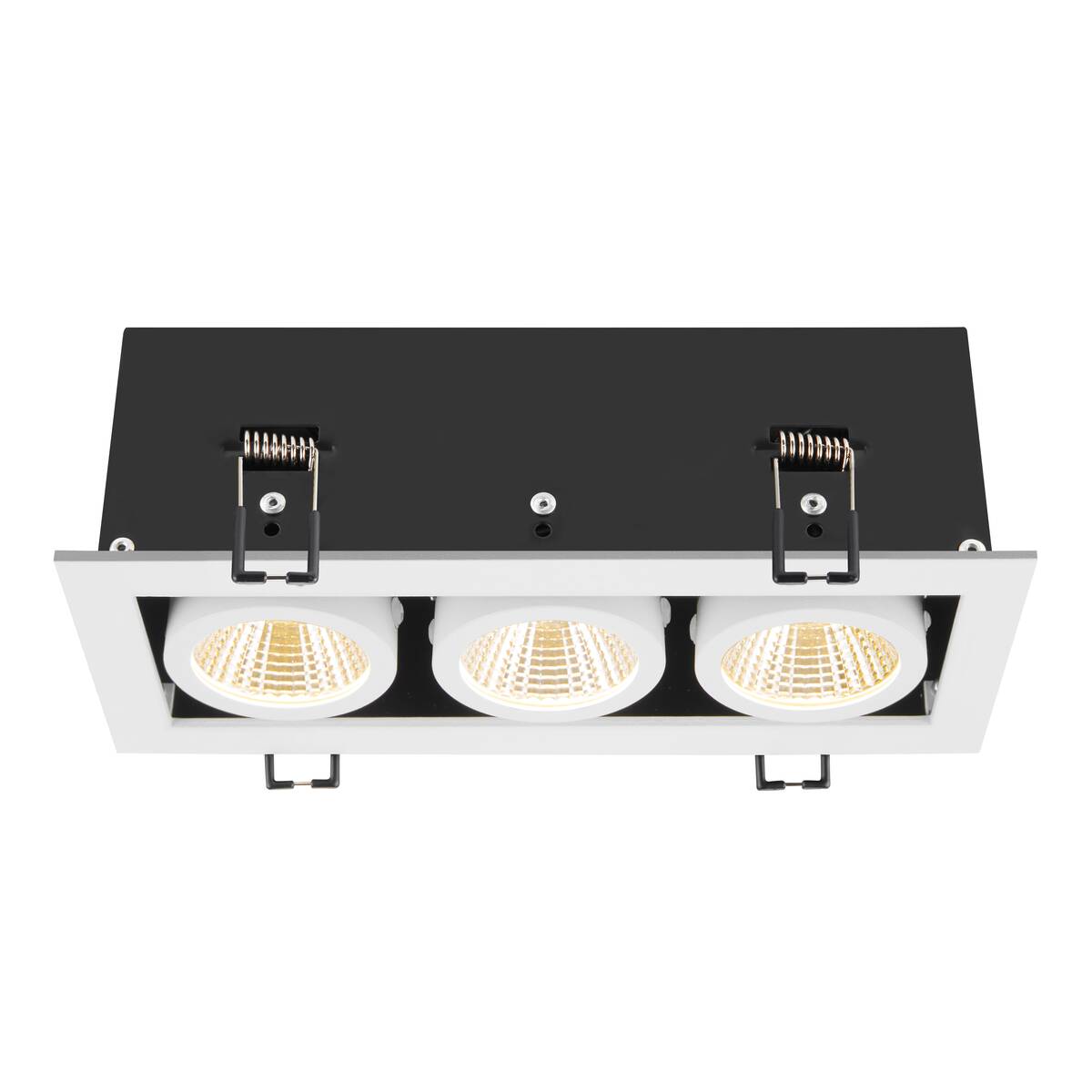

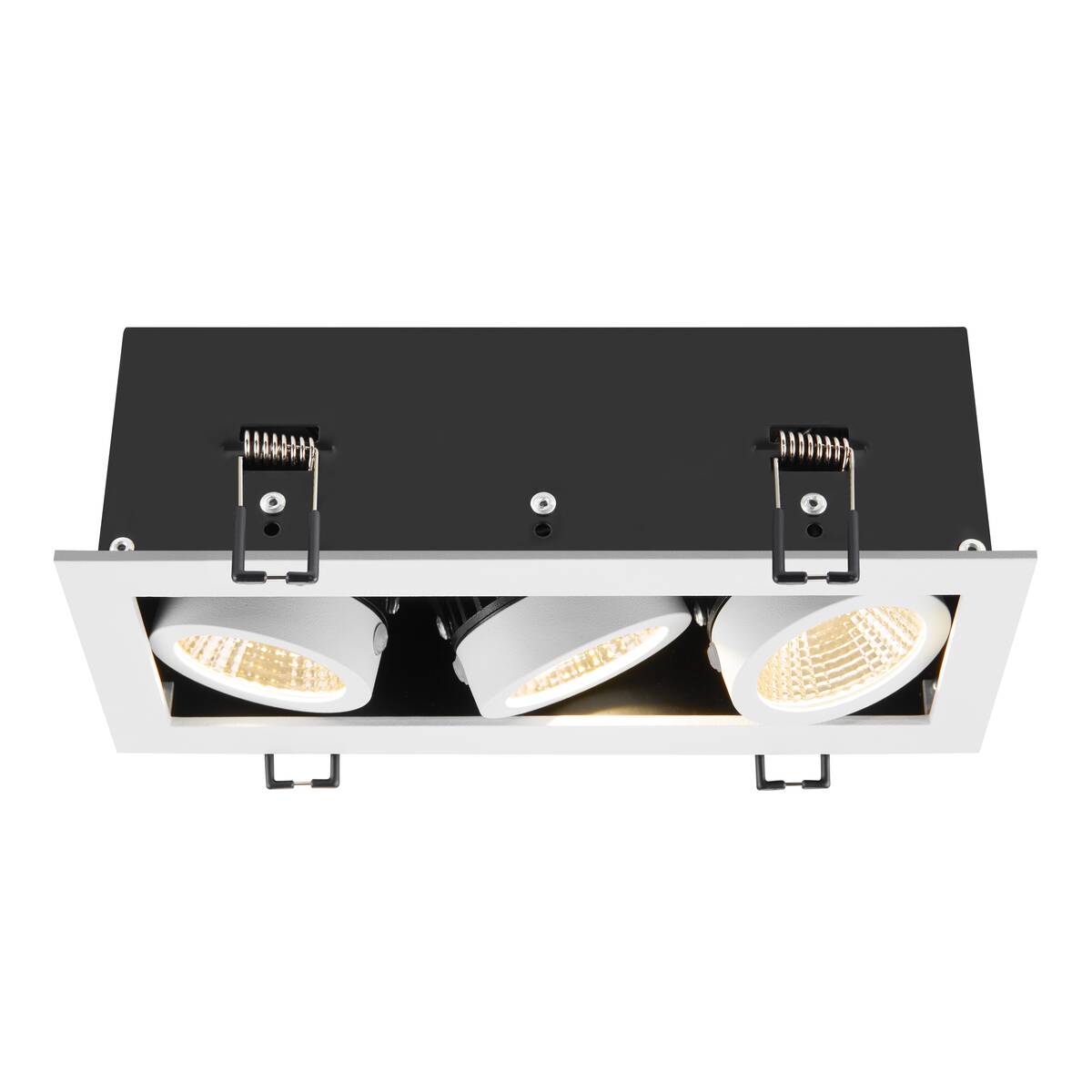

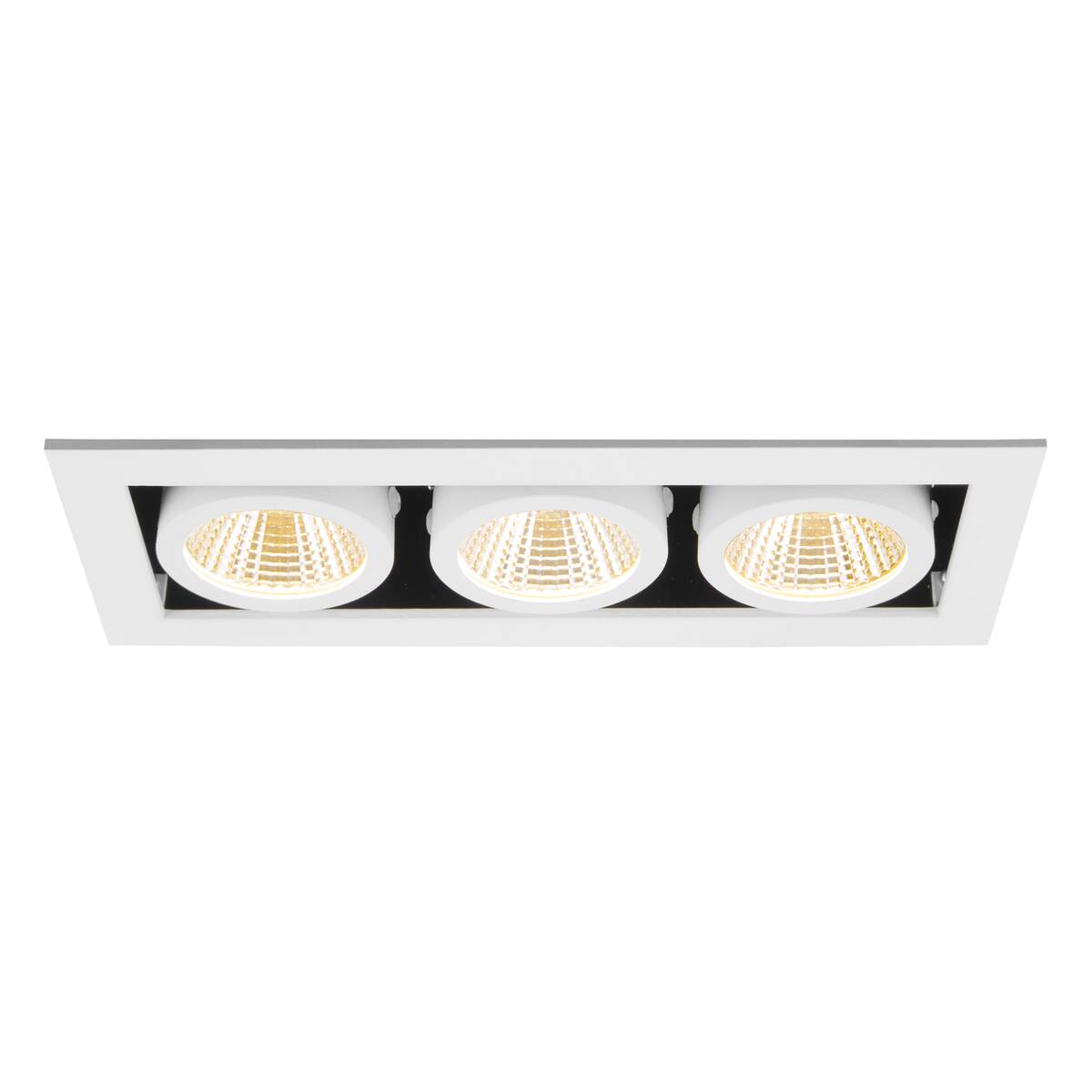

recessed ceiling light, triple, 3000 K, 38°, IP 20, square, white, More

30 °

50000 h

IP20

IK02

KADUX

Item no.: 1007568

RRP £181.00

Price only for commercial customers, plus VAT.

50+ in Stock

Description

The new generation of the KADUX recessed ceiling light family features a robust light housing with a square design. The three-lamp recessed ceiling light emits an even more efficient, warm-white light (3,000 K) with a light output of 120 lm/W and extremely neutral, dimmable colour with a CRI of over 90. Ideal for use in shops, hotels and catering facilities. It is also quick and easy to install thanks to its direct connection to a 230V mains voltage.

Leading and trailing edge phase dimmer This product is dimmable using a trailing and leading edge phase dimmer.

Vertical pivot range This product can be pivoted vertically.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

To the technical details

Technical data

Product name

KADUX

BIG WHITE Page

Colour

white/black

Material

aluminium

electrical power

20 W

Luminous Flux

2350 lm

Colour temperature

3000 Kelvin

Beam angle

38 °

CRI

Dimmable

Yes

Dimming technology

Leading edge
trailing edge

IP Code

IP20

Assembly

Recessed

Assembly details

Ceiling

Shape

rectangular

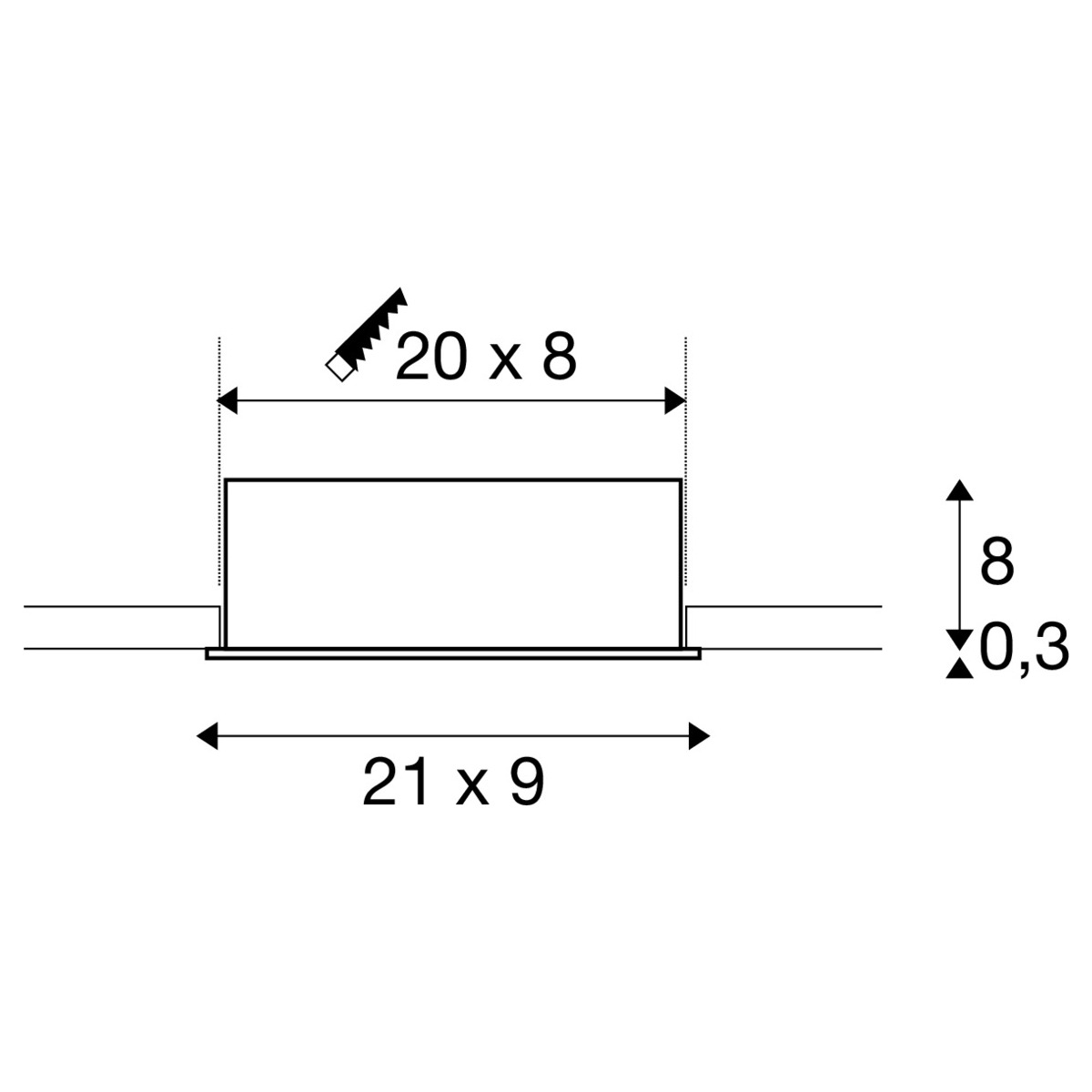

Length

21 cm

Width

9 cm

Height

8.3 cm

Shape of cut-out

square

Installation length

20 cm

Installation width

8 cm

Installation depth

8 cm

Rotating or tilting

tiltable

Vertical tilting range

30 °

Shock resistance category

IK02

Shock resistance

0.2 joule

Primary nominal voltage

220-240V ~50/60 Hz

Secondary power / secondary voltage

350 mA

Ambient temperature

-20 - 40 °C

Net weight

0.78 kg

Weighted consumption

20 kWh/1.000h

Service life

50000 h

Number of lights on LS B16A

72 St.

Number of lights on LS C16A

122 St.

Inrush current level

4 A

Inrush current duration

110 μs

Risk group

Luminous flux

2350 lm

Manual (pdf)

CE declaration (pdf)

Datasheet (pdf)

REACh (pdf)
